Fixed Headstock/Adjustable Rail Tailstock, Non-elevating

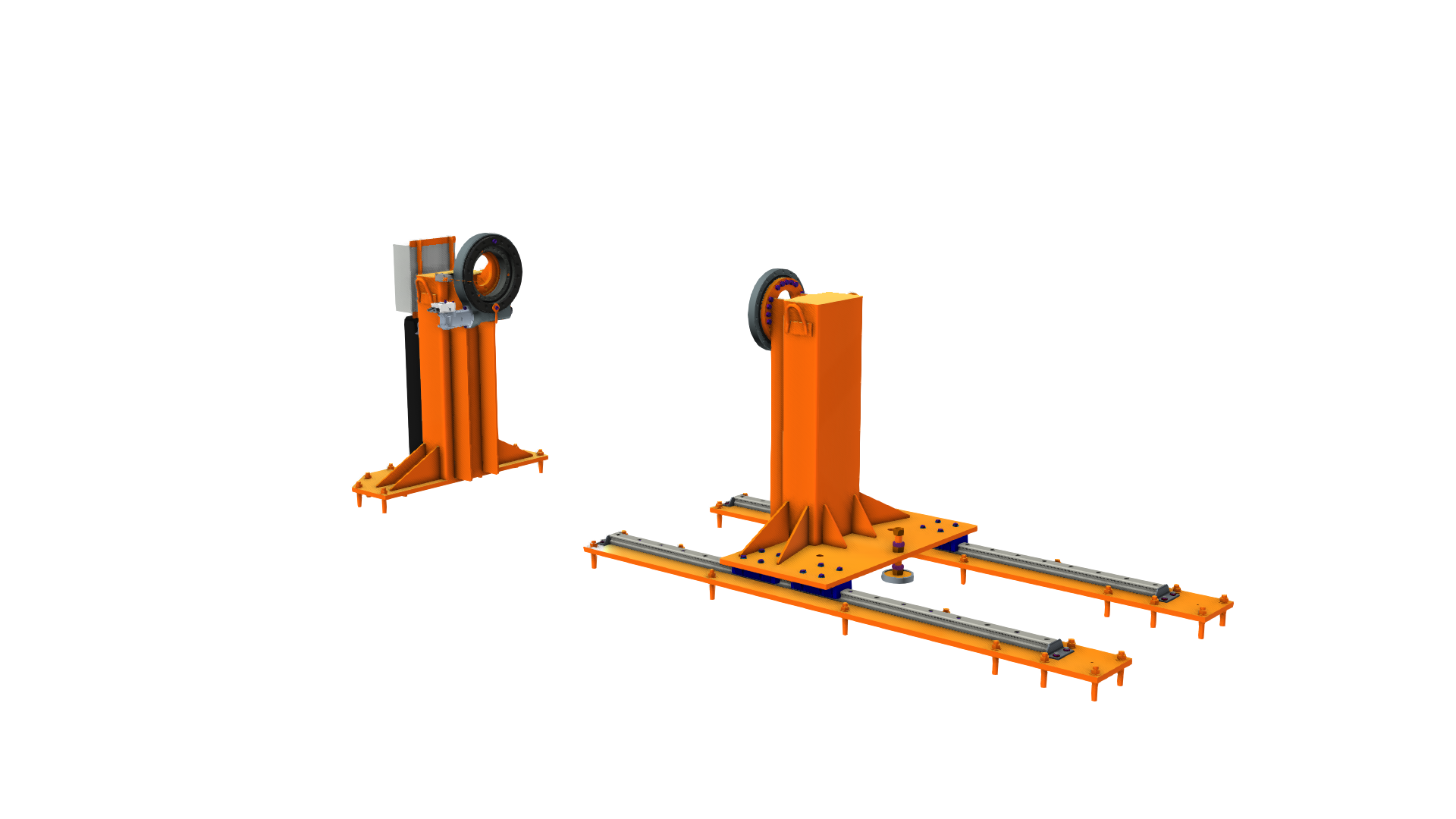

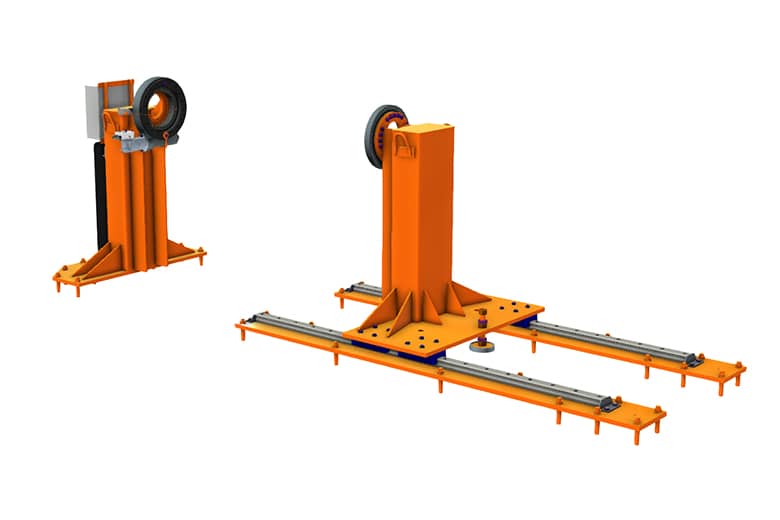

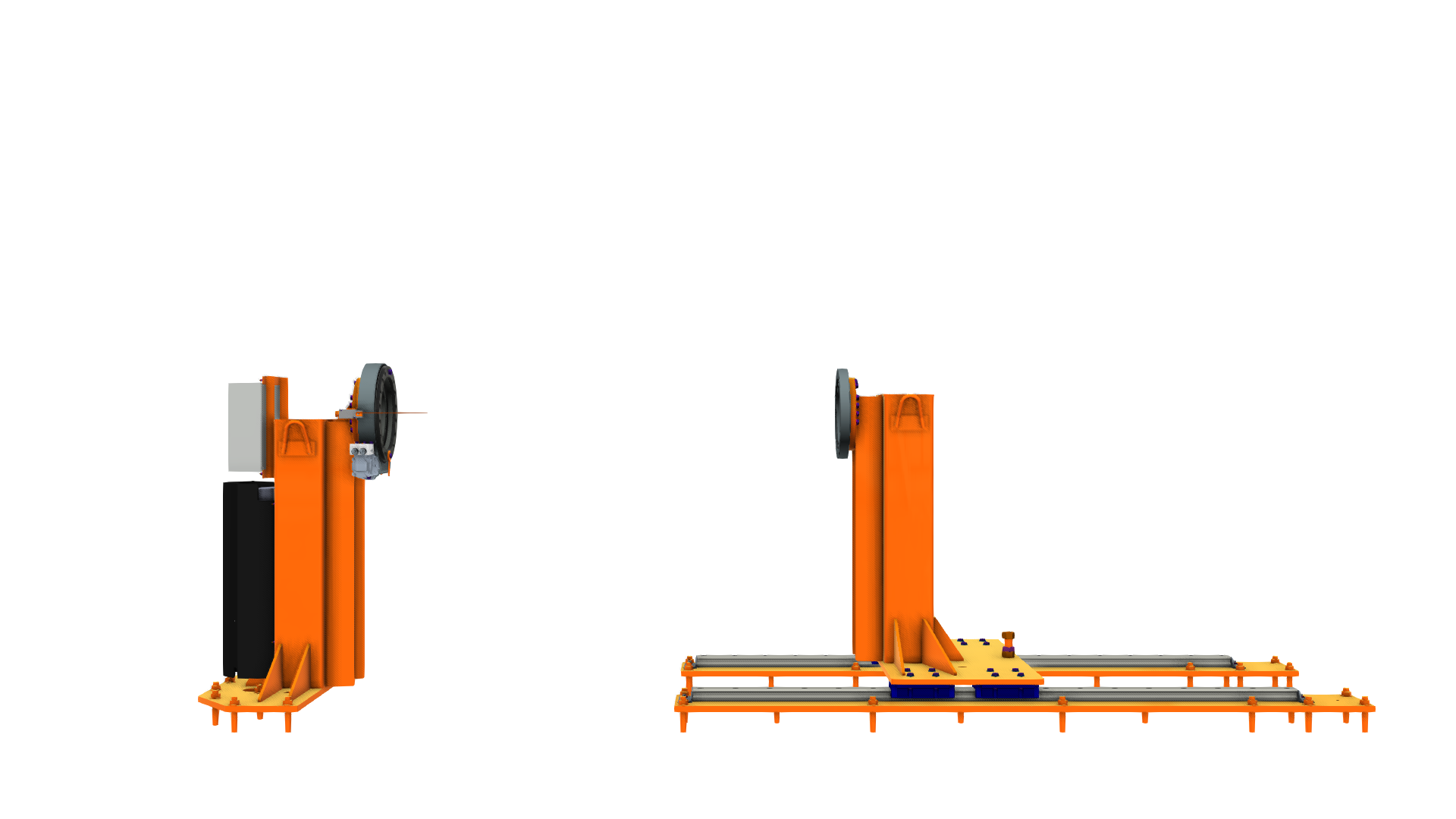

Fixed Height Fixed Headstock/Adjustable Rail Tailstock positioners from ALM Positioners are designed for tilt applications where the part length varies and requires precision due to a rigid part and/or fixture. In this application, the headstock and rails are bolted to the floor, and the tailstock slides along the rail through manual pushing.

Maximum Capacity:
15,000 - 25,000 lbs.
6,803 - 11,339 kg
Headstock Mounting Footprint:
Fixed
Tailstock Mounting Footprint:
Adjustable
Vertical Travel:
Fixed Height
Tilt Torque:
74,000 - 133,600 in/lbs.
8,360 - 15,094 N-m
Tilt Speed:
0.6 - 1.0 RPM

Request a Quote
